12 Wheels Shacman F3000 8x4 Tipper Truck with Multimedia System and Engine Capacity 8L

Product Categories
Henan Tarzan Heavy Industry Group Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

12 Wheels Shacman F3000 8x4 Tipper Truck with Multimedia System and Engine Capacity 8L

Condition : Used

Steering : Left

Horsepower : 351 - 450hp

Emission Standard : Euro 2

Make : Shacman, Shacman

Brand Name : Shacman

Place of Origin : SHN

Segement : Heavy truck

Market Segement : Engineering transportation

Engine Brand : WEICHAI

Fuel Type : Diesel

Engine Capacity : > 8L

Cylinders : 6

Gear Box Brand : FAST

Transmission Type : Manual

Forward Shift Number : 10

Reverse Shift Number : 2

Maximum Torque(Nm) : 2000-2500Nm

Cargo Tank Dimension : 7600 X 2300 X1500 mm

Cargo Tank length : 6.2-8m

Gross Vehicle Weight : 15-20T

Capacity (Load) : 31 - 40T

Fuel Tank Capacity : 300-400L

Drive Wheel : 6x4

Passengers : 2

Driver's Seat : Normal

Rear Camera : None

Cruise Control : None

ABS(Antilock Braking System) : None

ESC(Electronic Stability Control System) : None

Touch Screen : None

Multimedia System : None

Window : Manual

Air Conditioner : Manual

Tire Number : 10

After-sales Service Provided : Video technical support, Online support, Free spare parts

Overall Dimension(LXWXH)(mm) : 9770X4230X4560

Curb Weight(kg) : 39000

Engine : Weichai WP13G530E310

Gearbox : Auto Gearbox FC6A250PRT

Front Axle : Welded Axle Housing

Middle-Rear Axle : Main Reduction Ratio 4.11

Wheel rim : 13.00/2.0-25

Tyre : 18.00R25

Front Suspension System : Leaf spring + double-acting cylinder shock absorber

Rear Suspension : Spring + Rubber balance suspension

Price : $25,000.00/units 1-2 units

Contact Now

Product Video
Products Description

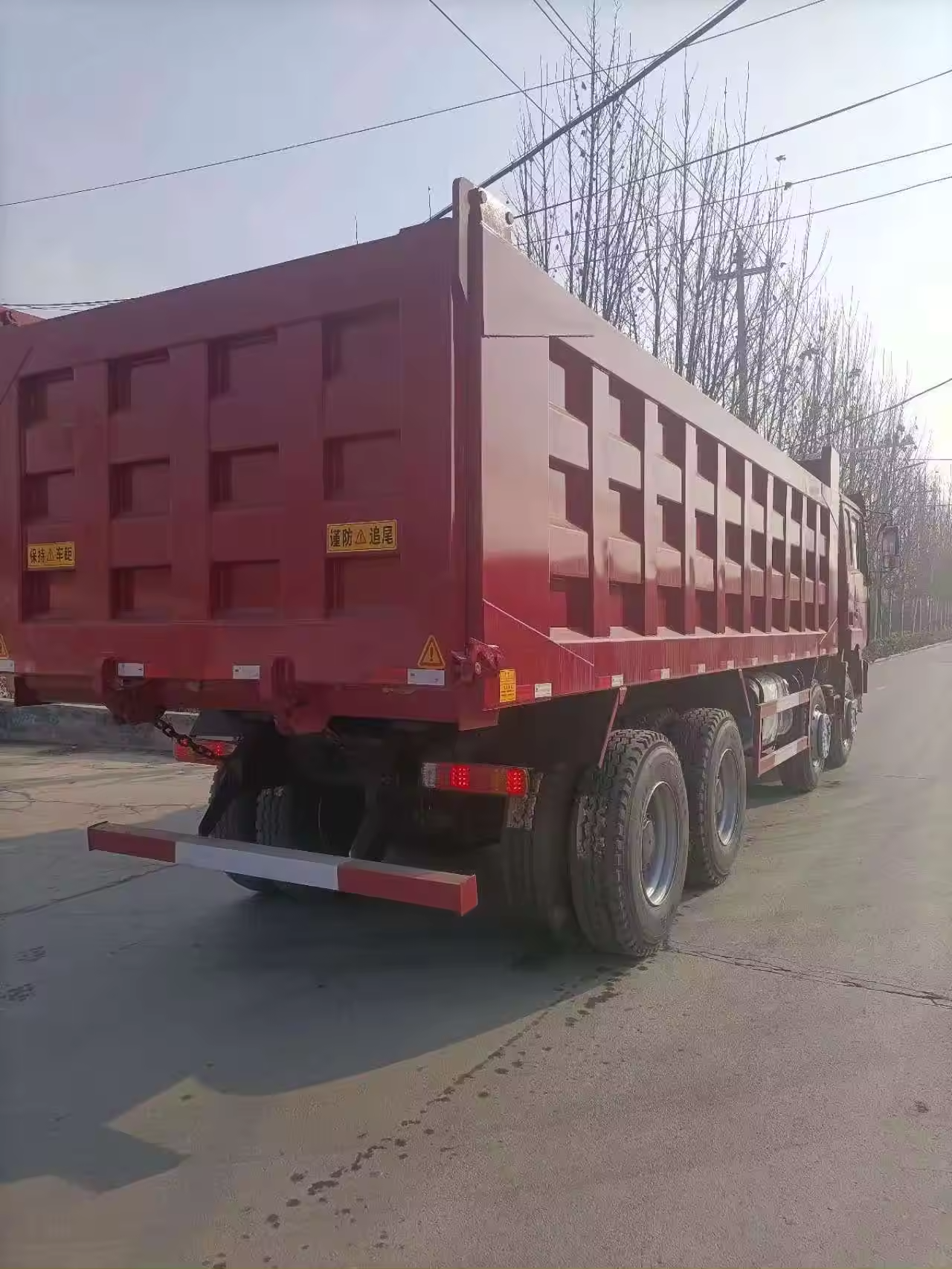

Shacman 380 HP 8X4 Used Dump Truck

Truck Fatures:

1) New tipper box

2) New tyres

3) New cab interior

4) Better price-performance Ratio

5) 380 HP big power

6) Better performance and high efficiency

7) MAN Technology Axles with better duration
12 Wheels Shacman F3000 8x4 Tipper Truck with Multimedia System and Engine Capacity 8L
12 Wheels Shacman F3000 8x4 Tipper Truck with Multimedia System and Engine Capacity 8L
12 Wheels Shacman F3000 8x4 Tipper Truck with Multimedia System and Engine Capacity 8L
12 Wheels Shacman F3000 8x4 Tipper Truck with Multimedia System and Engine Capacity 8L
12 Wheels Shacman F3000 8x4 Tipper Truck with Multimedia System and Engine Capacity 8L
12 Wheels Shacman F3000 8x4 Tipper Truck with Multimedia System and Engine Capacity 8L
Product Paramenters
Item
Data
Item
Data
Max.Design Weight（kg）
108000
Overall Dimension（LxWxH）（mm）
9770x4230x4560
Unladen/Laden Max.Speed（km/h)
48/41
Unladen/Laden Max.Gradeability（°）
36.7
Struck Capacity (flat/ heaped)m³
38/44
Min.Turning Diameter(m)
≤24
Curb Weight（kg）
39000
Payload(kg)
70000
Wheel Tread（mm）
Front Axle：3120；Middle-Rear Axle：2910
Wheelbase（mm）
3910（Front-Middle）1800（Middle-Rear）
Approaching Angle(°）
31
Departure Angle（°）
60
Ground Clearance（mm）
≥466 /406
Number of Axles
3
Make
Weichai WP13G530E310
Number of Cylinder
6
Type
Line, Direct Injection, Water-cooling, Inter-cooling, Electric-controlled
Bore/Stroke（mm）
127/165
Rated Power(kW)
390
Min. Fuel Consumption（g/kW.h)
195.9
Rated Speed(r/min)
2100
Max. Torque（N.m)
2300
Emission load (ml)
12540
Emission Standard
StageIII GB20891-2014
Auto Gearbox
FC6A250PRT
Type
planetary
Speed Ratio
1st
4.4
2nd
2.33
3rd
1.53
4th
1.00
5th
0.72
6th
0.61
R1
3.97
Front Axle
Steering Axle
Welded Axle Housing
Middle-Rear Axle
Main Reduction Ratio
4.11
Wheel Edge Reduction Ratio
4.952
Total Reduction Ratio
20.357
Wheel
Rim
13.00/2.0-25
Tyre
18.00R25
Tyre Pressure（MPa）
0.8
Suspension System
Front Suspension
Leaf spring + double-acting cylinder shock absorber
Rear Suspension
Spring + Rubber balance suspension
