Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box

Condition : New

Steering : Left

Horsepower : 451 - 500hp

Emission Standard : Euro 3

Brand Name : LCMG

Place of Origin : SHN

Segement : Heavy truck

Market Segement : Mining transportation

Engine Brand : WEICHAI

Fuel Type : Diesel

Engine Capacity : > 8L

Cylinders : 6

Gear Box Brand : FAST

Transmission Type : Manual

Forward Shift Number : 8

Reverse Shift Number : 1

Maximum Torque(Nm) : ≥2500Nm

Dimensions (L x W x H) (mm) : 9770 X 4230 X 4560 mm

Cargo Tank Dimension : 8100 X3640X2600 MM

Cargo Tank length : ≥8m

Gross Vehicle Weight : ≥30T

Capacity (Load) : > 50T

Fuel Tank Capacity : 500-600L

Drive Wheel : 6x4

Passengers : 3

Driver's Seat : Normal

Rear Camera : None

Cruise Control : None

ABS(Antilock Braking System) : None

ESC(Electronic Stability Control System) : None

Touch Screen : None

Multimedia System : None

Window : Manual

Air Conditioner : Manual

Tire Number : 10

After-sales Service Provided : Video technical support, Online support

Overall Dimension(LXWXH)(mm) : 9770X4230X4560

Curb Weight(kg) : 39000

Engine : Weichai WP13G530E310

Gearbox : Auto Gearbox FC6A250PRT

Front Axle : Welded Axle Housing

Middle-Rear Axle : Main Reduction Ratio 4.11

Wheel rim : 13.00/2.0-25

Tyre : 18.00R25

Front Suspension System : Leaf spring + double-acting cylinder shock absorber

Rear Suspension : Spring + Rubber balance suspension

Packaging Details : Bulk ship

Port : Tianjin

Supply Ability : 100 Unit/Units per Month

Price : $124,200.00/units 1-2 units

Contact Now

Product Video
Products Description
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box
CMT106 Automatic Gear Mining DUMP TRUCK

Best competitor of Caterpillar

Efficient, reliable, economic, safe, comfortable, SMART

● Through the perfect combination of wide body car and rigid mine car, a cost-effective mine car designed for carrying large-scale open pit mines with heavy demand and bad working conditions
● The front and rear suspension adopt multi-stage shock absorption, which effectively prolongs the service life of the leaf spring and has strong impact resistance.
● Full hydraulic steering, better comfort than mechanical steering
● Adopt all-wheel dry-type caliper brake, cylinder and exhaust assist brake, improving the safety of the whole machine.
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box

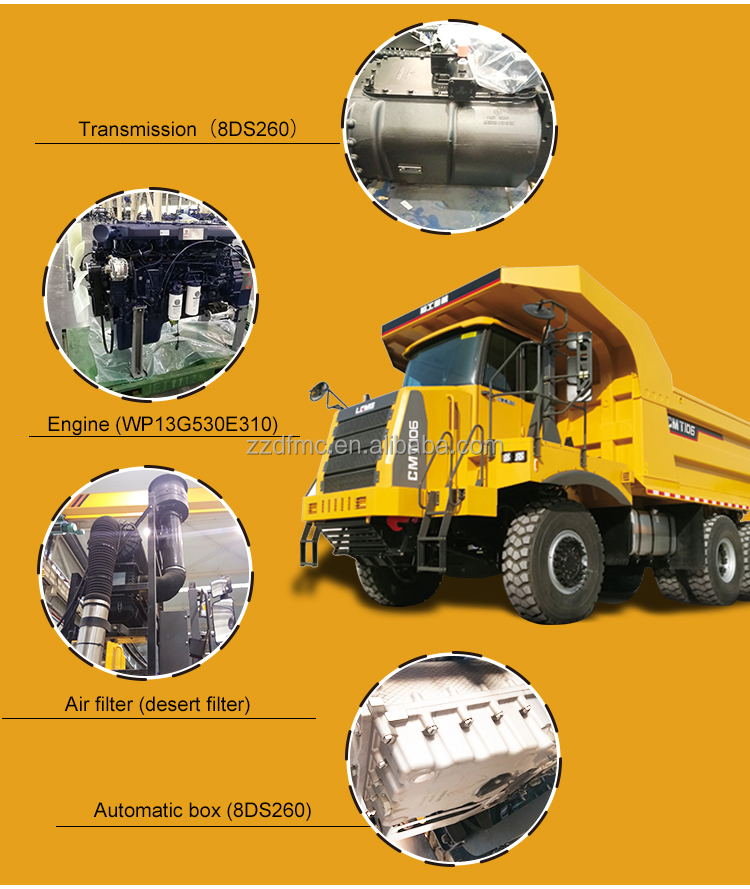

Details Images
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box
Product Paramenters
Item
Data
Item
Data
Max.Design Weight（kg）
108000
Overall Dimension（LxWxH）（mm）
9770x4230x4560
Unladen/Laden Max.Speed（km/h)
48/41
Unladen/Laden Max.Gradeability（°）
36.7
Struck Capacity (flat/ heaped)m³
38/44
Min.Turning Diameter(m)
≤24
Curb Weight（kg）
39000
Payload(kg)
70000
Wheel Tread（mm）
Front Axle：3120；Middle-Rear Axle：2910
Wheelbase（mm）
3910（Front-Middle）1800（Middle-Rear）
Approaching Angle(°）
31
Departure Angle（°）
60
Ground Clearance（mm）
≥466 /406
Number of Axles
3
Make
Weichai WP13G530E310
Number of Cylinder
6
Type
Line, Direct Injection, Water-cooling, Inter-cooling, Electric-controlled
Bore/Stroke（mm）
127/165
Rated Power(kW)
390
Min. Fuel Consumption（g/kW.h)
195.9
Rated Speed(r/min)
2100
Max. Torque（N.m)
2300
Emission load (ml)
12540
Emission Standard
StageIII GB20891-2014
Auto Gearbox
FC6A250PRT
Type
planetary
Speed Ratio
1st
4.4
2nd
2.33
3rd
1.53
4th
1.00
5th
0.72
6th
0.61
R1
3.97
Front Axle
Steering Axle
Welded Axle Housing
Middle-Rear Axle
Main Reduction Ratio
4.11
Wheel Edge Reduction Ratio
4.952
Total Reduction Ratio
20.357

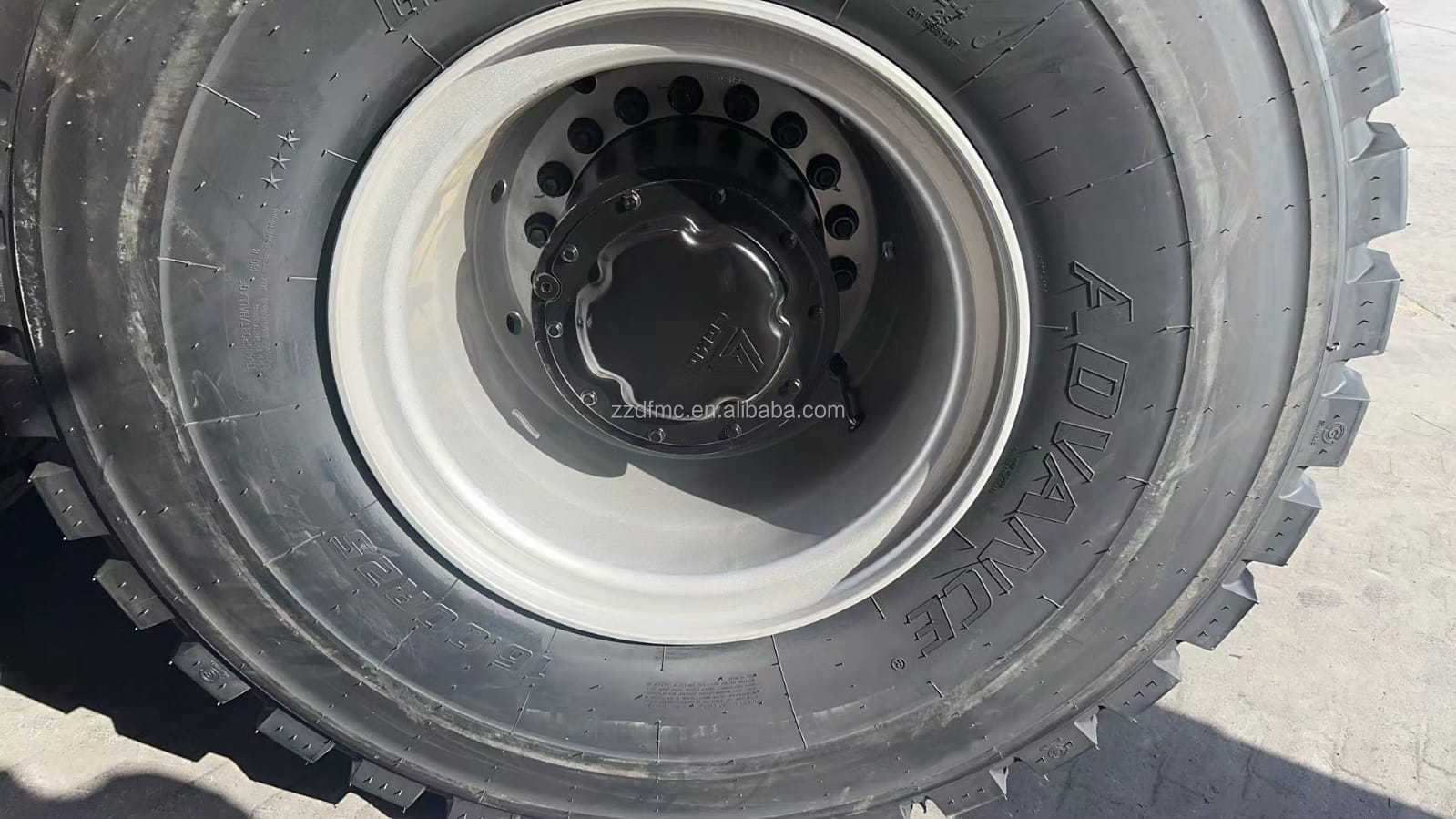

Wheel
Rim
13.00/2.0-25
Tyre
18.00R25
Tyre Pressure（MPa）
0.8
Suspension System
Front Suspension
Leaf spring + double-acting cylinder shock absorber
Rear Suspension
Spring + Rubber balance suspension
